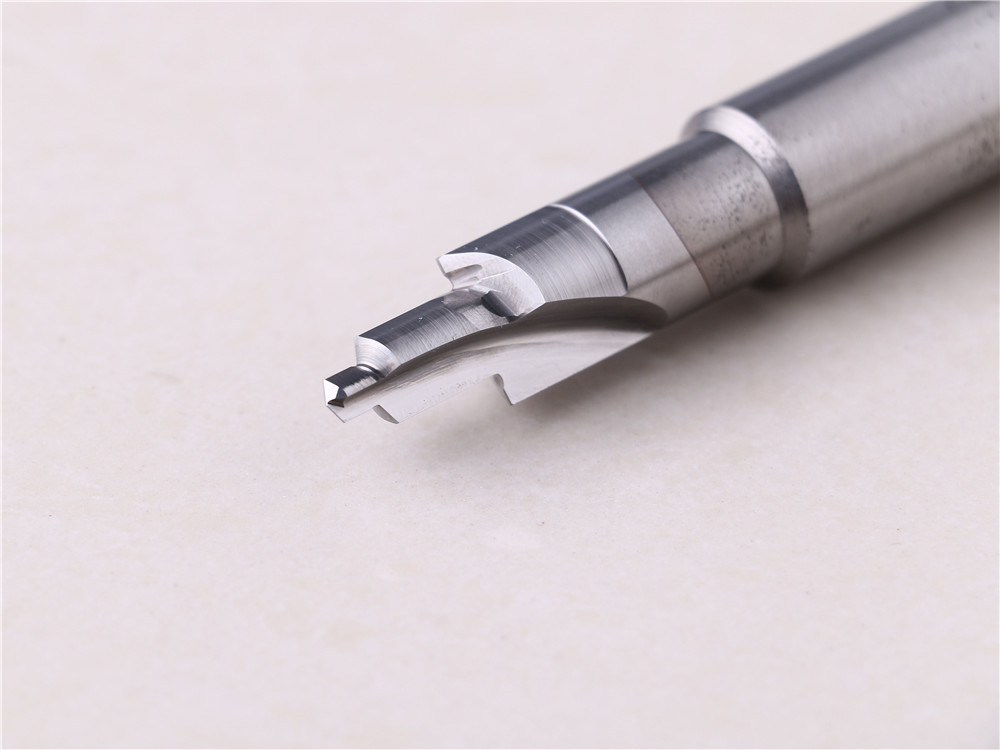

Carbide forming knife is used for forming hole machining

Short Description:

Tool material: tungsten steel,cemented carbide, HSS-E, HSS-PM

Applicable machine: Carbide forming tool is a kind of processing a variety of complex shapes of the tool, can be designed according to the shape of the hole shape! Suitable for five axis machining center, lathe, drilling machine, etc


Product Detail

Product Tags

Product Advantage

The forming tool is used for machining the forming surface of the workpiece. According to the drawings of the workpiece, the tool can be formed once, which can greatly improve the working efficiency and accuracy

The step hole on the customer's workpiece is still chamfered. If it is done with several drill bits and chamfered knives, it will require frequent tool change and waste processing time! The processing efficiency is low, if the forming knife is processed once, the efficiency is high, and the positioning is not repeated, and the processing accuracy is high

Product Advantages

Left and right cutting tungsten steel reamer, according to the customer's product material and hole bottom requirements, choose different high quality coating, choose different cutting parameters, so as to achieve more stable and efficient processing effect

Internal cold drilling and chamfering forming, can greatly improve the cutting efficiency, tool tip cooling fast, not easy to break the knife

Processing case

Brand: OPT

Model: D10.5*12.5*D13R2*D16*100*6F

Material: HT250

Method: Reaming

Parameter: n=700rpm

Vc max=28.5m/min

Fn=0.2mm/rev

Ra: 0.4L;

cutting life:19000 holes

Tungsten steel forming reamer, can ream a variety of materials of the workpiece, and ream finish up to 0.6, can replace the old process hob grinding hole, improve efficiency and accuracy
