Thread tap for machining cast iron materials, Straight grooved carbide tap for cast iron

Short Description:

Tool material: tungsten steel,cemented carbide, kentanium

Applicable machine：This tap is a kind of tap used for processing cast iron, specially used for processing cast iron, suitable for machining center, lathe, tapping machine, etc.

Send email to us Whatsapp

Product Detail

Specification

Product Tags

Processing case

Workpiece material hardness: HB200~250

hole depth: 25mm

aperture size: M6*1

recommended parameter: Vc=18.84m/min fr=1mm/r

cutting life: 40000hole

It is 10~20 times the life of high speed steel tap

Straight groove drill reamer for all kinds of cast iron-01

Thread tap for machining cast iron materials, Straight grooved carbide tap for cast iron-01 (1)

Product advantages

Compared with steel, tungsten taps for cast iron materials are relatively easy to work. Because the iron filings of cast iron materials are easier to control, the cutting edge is not easy to stick iron filings, so the tap life of cast iron materials is relatively long

The inner groove of the tap is polished to make it easier to remove the iron filings, making it easier to achieve high tool life

Thread tap for machining cast iron materials, Straight grooved carbide tap for cast iron-01 (7)

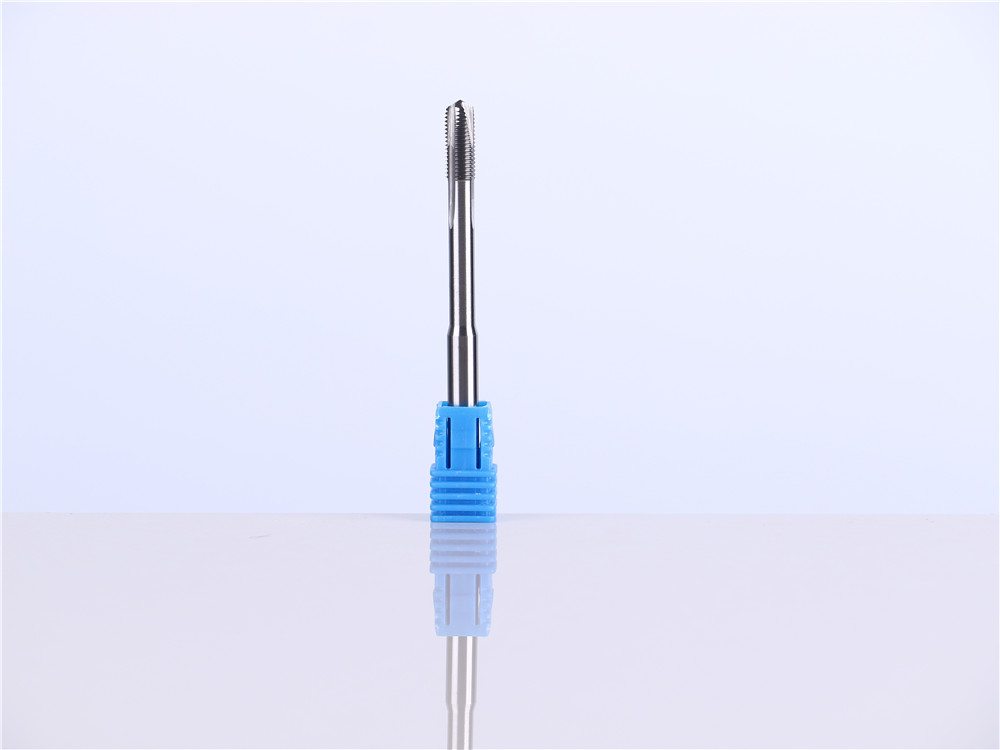

Thread tap for machining cast iron materials, Straight grooved carbide tap for cast iron-01 (6)

If it is a blind hole, can use spiral tap, is through hole, can use the tip or straight groove tap

Previous: Carbide Taps, Threading tools-tap and dies, carbide tap for hardened steel, Tungsten steel tap, Tungsten steel threading tool, screw tap

Next: Sprial flute solid carbide taps for cast iron

Straight flute solid carbide taps for cast iron

Thread tap for machining cast iron materials, Straight grooved carbide tap for cast iron-01

Thread tap for machining cast iron materials, Straight grooved carbide tap for cast iron-01 (2)

Designation D	Thread size		Pitch mm	L1 mm	L2 mm	D mm	L mm	Z	a ¨	Pre-drill mm
T602-040048-M3x0.5	M3	x	0.5	11	18	4	48	4	3.15	2.46-2.59
T602-040050-M3.5×0.6	M3.5	x	0.6	13	21	4	50	4	3.15	2.85-3.01
T602-050053-M4x0.7	M4	x	0.7	13	21	5	53	4	4	3.25-3.42
T602-060058-M5x0.8	M5	x	0.8	16	25	6	58	4	4.5	4.14-4.33
T602-060066-M6x1	M6	x	1	19	30	6	66	4	4.5	4.92-5.15
T602-080072-M8x1	M8	x	1	22	35	8	72	4	6.3	6.92-7.15
T602-080072-M8x1.25	M8	x	1.25	22	35	8	72	4	6.3	6.65-6.91
T602-080080-M10x1	M10	x	1	24	-	8	80	4	6.3	8.92-9.16
T602-100080-M10x1	M10	x	1	24	38	10	80	4	8	8.92-9.16
T602-080080-M10x1.25	M10	x	1.25	24	-	8	80	4	6.3	8.65-8.91
T602-100080-M10x1.25	M10	x	1.25	24	38	10	80	4	8	8.65-8.91
T602-080080-M10x1.5	M10	x	1.5	24	-	8	80	4	6.3	8.38-8.67
T602-100080-M10x1.5	M10	x	1.5	24	38	10	80	4	8	8.38-8.67
T602-100089-M12x1.25	M12	x	1.25	29	-	10	89	4	8	10.65-10.91
T602-120089-M12x1.25	M12	x	1.25	29	46	12	89	4	10	10.65-10.91
T602-100089-M12x1.5	M12	x	1.5	29	-	10	89	4	8	10.38-10.67
T602-120089-M12x1.5	M12	x	1.5	29	46	12	89	4	10	10.38-10.67
T602-100089-M12x1.75	M12	x	1.75	29	-	10	89	4	8	10.11-10.44
T602-120089-M12x1.75	M12	x	1.75	29	46	12	89	4	10	10.11-10.44
T602-120095-M14x1.5	M14	x	1.5	30	-	12	95	4	10	12.38-12.67
T602-120095-M14x2	M14	x	2	30	-	12	95	4	10	11.84-12.2
T602-120102-M16x2	M16	x	2	32	-	12	102	4	10	13.9-14.2
